Bracket Revit Family

Bracket BIM Objects

Royal Corinthian offers Revit Families for Brackets, also known as Corbels, designed using Revit and AutoCad files. You can easily download these architectural elements without the need for registration or any hassle. Sometimes referred to as outriggers or rafter tails, these elements have been a part of our manufacturing expertise for nearly three decades. We craft them from a variety of materials, including PVC, FRP, fiberglass, synthetic stone, cast stone, GFRC, lightweight cast stone, and high-density polyurethane. Unlike traditional materials like wood, concrete, and metal, our products are resistant to rot, splitting, crumbling, cracking, rust, and infestations. That’s why we confidently offer a lifetime warranty for these products.

Whether you’re an architect, engineer, or designer, you’re welcome to download these files for your current or upcoming projects. We continually expand our product offerings, so if none of our existing brackets suit your needs, don’t hesitate to reach out. Moreover, customization and historical replication are our specialties. Thanks to our in-house tooling capabilities, customization is cost-effective. In fact, many of our current standard products were once custom-made. We appreciate your consideration of our architectural wall brackets. Please explore our Bracket Revit Family below.

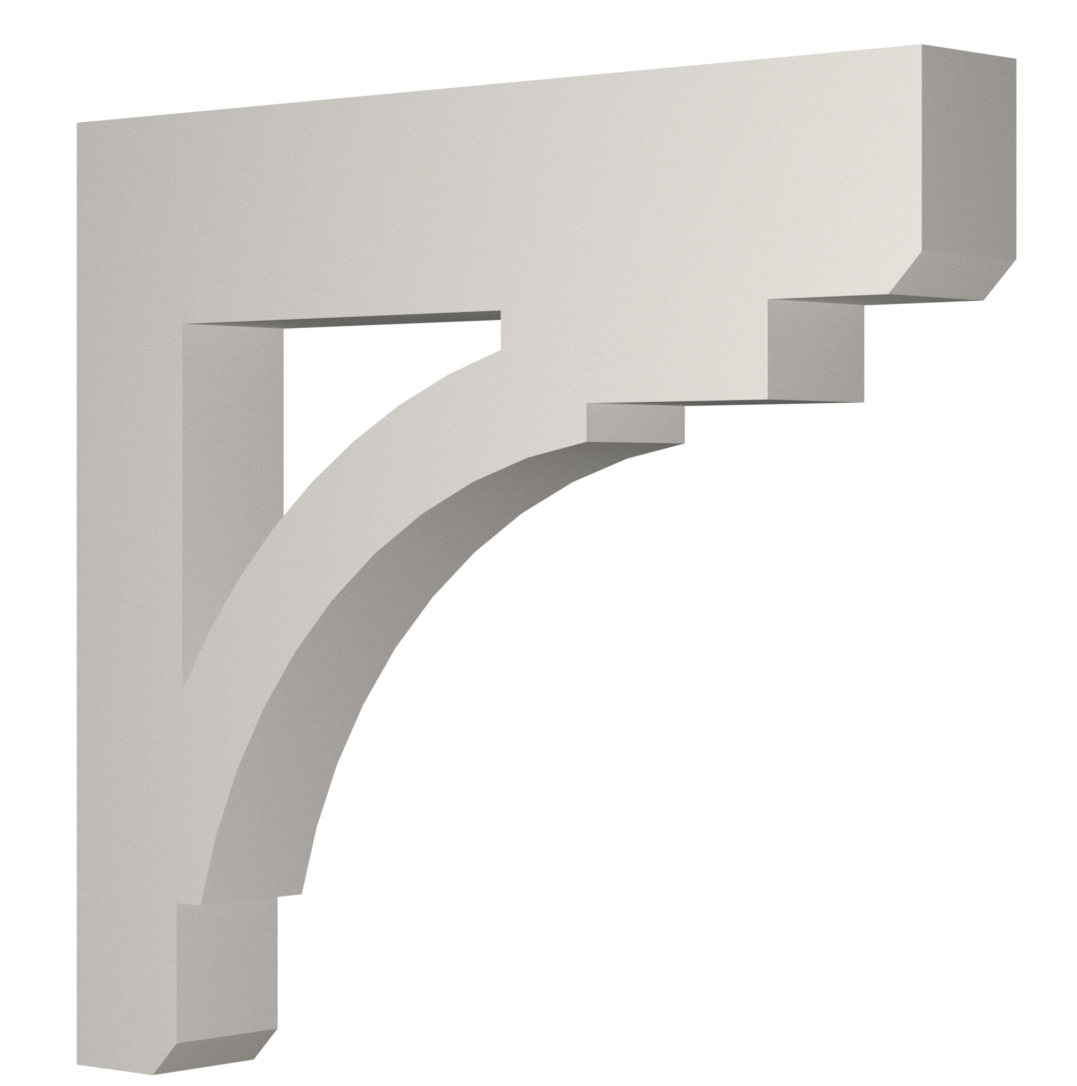

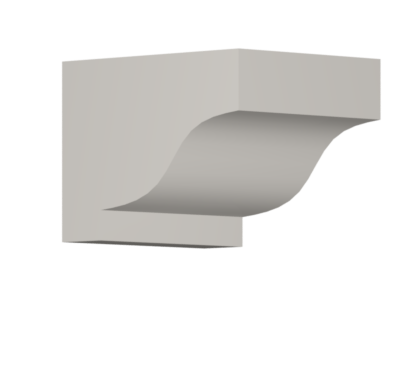

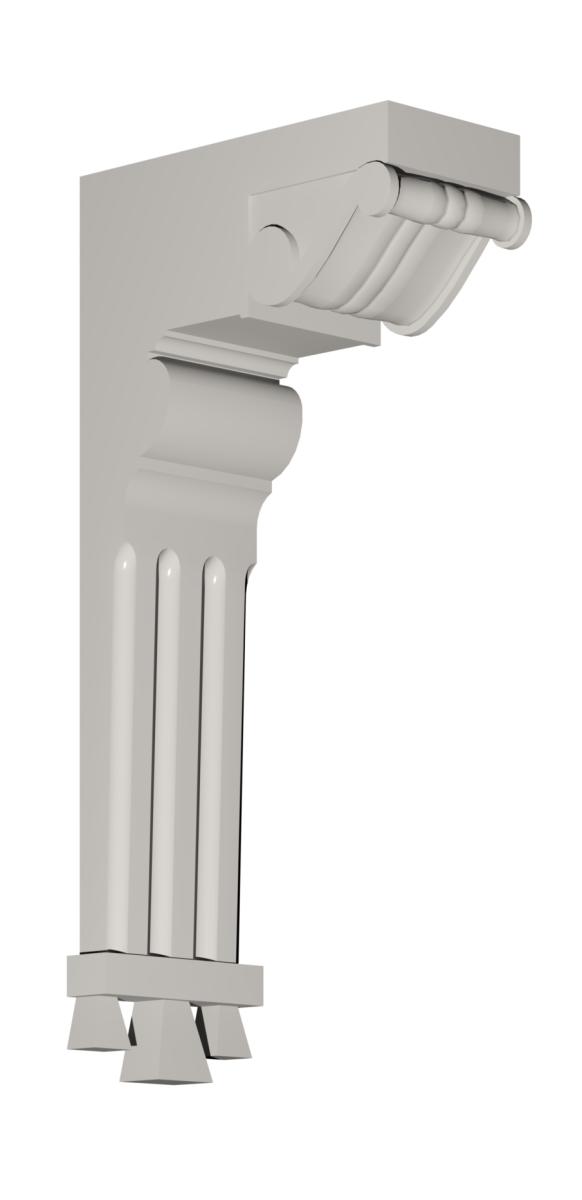

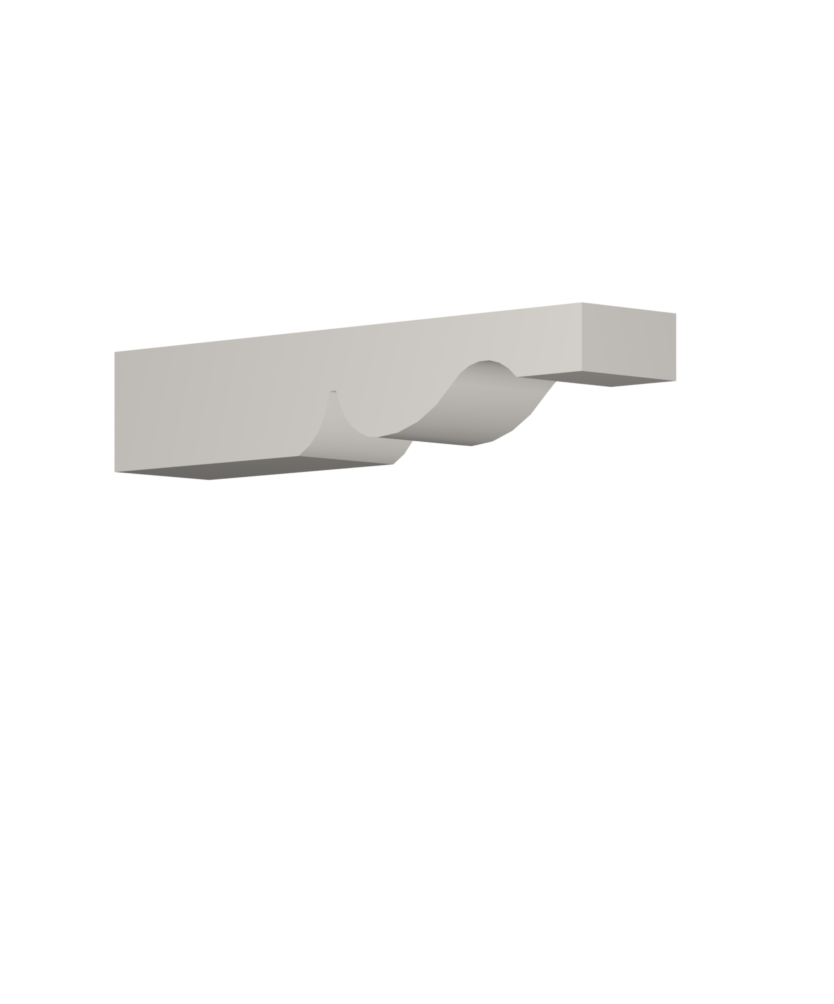

Bracket Revit Family

Brackets or Corbels are available in PVC, FRP, fiberglass, synthetic stone, cast stone, GFRC, lightweight cast stone, and high-density polyurethane.
